New arrival in Gatwick Distribution Services consignment stock is this set of heavy duty lifting equipment. Ideal for shipyard or repair yard/drydock use, not limited to marine application but useful for any heavy lifting/moving requirements.

The system is comprised of the following components:
LIFTING EQUIPMENT SH 10108 – built 2002 in “As New” condition
LIFTING EQUIPMENT – total capacity 4000 T – 50 hydraulic jacks
Equipment suitable for transfer of heavy duty structures from construction site to the barge or ship.
Supplied with hydraulic jacks together with electric power unit and supplier project management for the construction of carriage.
– The system can be used as it is in static conditions and then can transfer the payload on heavy duty tyres/boogies .
– The system can be installed on 4 wheels travelling on rails/boogies

OPTION 1)
“As is, where is” to include:
Qty. 3 electric hydraulic power unit (see photo attached )

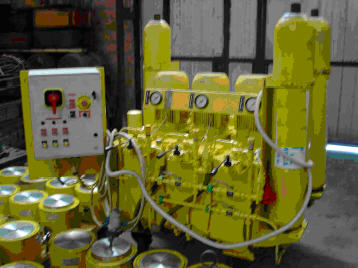

Hydraulic Control Unit

Qty. 1 set of hydraulic hoses
Qty. 50 hydraulic jacks

Offers invited in excess of EURO 176.000

OPTION 2.
The system as OPTION 1 as above
Qty. 3 electric hydraulic power unit (see photo attached )
Qty. 1 set of hydraulic hoses
Qty. 50 hydraulic jacks
Plus
Engineering drawing for boogies manufacture
Qty. 30 kits to motorise hydraulically (hydraulic motor gears and wheels only to be installed in the boogies by client as per design)
Qty. 20 idle boogies (wheels only to be installed in the boogies by client as per design)
So boogies will be built by the client with suppliers own design and assembling design.
Diesel power unit for boogies transfer, Hydraulic power pack composed of:
DIESEL DRIVEN 12 CYLINDERS DEUTZ TYPE F12 L 413, HP 288, 2500 RPM
GALDABINI HYDRAULIC PUMP VARIABLE CAPACITY MANUAL CONTROL
MINIMUM OIL CAPACITY 12 L/MIN
MAXIMUM OIL CAPACITY 248 L/MIN
PRESSURE 250 BAR
DIESEL TANK
MANOMETER AND DISTRIBUTORS
perfect working condition

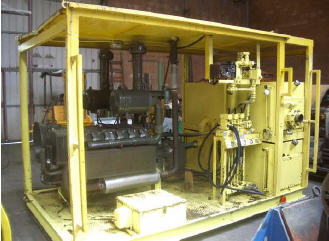

Diesel Power Pack

Offers invited in excess of EURO 649.000

Option 3
As option 2 but split into 2 parts each 25 boogies/2000 tonnes capacity
Offers invited in excess of EURO 357,500 each

Call +44 1293 871767 or e-mail gdssales1@gmail.com for more details or to discuss an offer.
